Description

Product Introduction

The roll slitting machine for filter paper is designed specifically to trim large rolls of various thin materials, such as non-woven fabric, special paper, coated paper, kraft paper and of course, filter paper into smaller rolls of different widths. The rewinding section of the machine has two motors, which ensures that the two bottom drums rotate at different speeds, resulting in a well-compressed and tightly-wound rewinding roll. The machine is built with a very stable and sturdy frame structure, which allows it to run at high speeds without encountering any difficulties. With the capability of handling rolls of up to 2500mm in width, this machine is the go-to solution for companies dealing with large-scale production of filter paper rolls.

Features

The automatic paper tension control feature of the filter paper roll slitting machine ensures consistent tension maintenance throughout the rewinding process, regardless of the size of the paper being used.

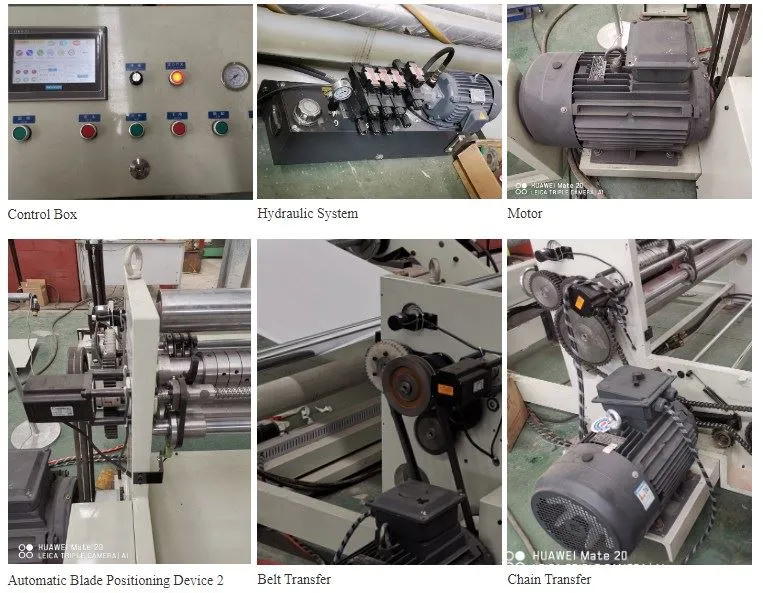

The slitter is equipped with a PLC controller with a color touch screen and also utilizes a hydraulic device for loading and unloading paper rolls.

The air lift shaft is utilized for the winding of the product, with automatic increase in tension done through the PLC operation.

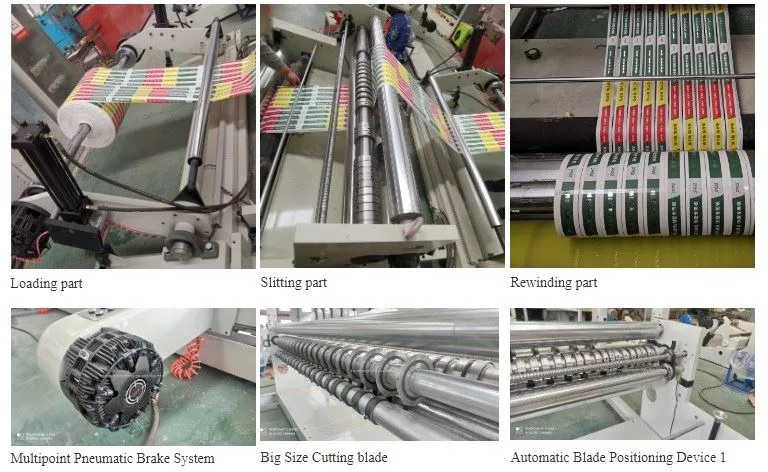

You have the option to select a cutting blade that is operated and adjusted effortlessly, thanks to its pneumatic mechanism.

Specifications

Model	ZWJ-1880	ZWJ-2400	ZWJ-2640
Rewinding Type	Surface	Surface	Surface
Unwind Diameter	Max1800mm	Max1800mm	Max1800mm
Rewind Diameter	Max1500mm	Max1500mm	Max1500mm
Rewind shaft	Air shaft 76.2mm	Air shaft 76.2mm	Air shaft 76.2mm
Slitting Width	70-1900mm	70-2400mm	70-2600mm
Paper GSM	60-510g/m²	60-510g/m²	60-510g/m²
Working Speed	400~600m/min	400~600m/min	400~600m/min
Tension Control	Automatic	Automatic	Automatic
Cutting Knife	Pneumatic blade	Pneumatic blade	Pneumatic Blade
Motor power	97KW	145KW	145KW
Machine Weight	12T	13T	14T
